0.5-1.0 M/S ELEVATOR TRACTION SYSTEM LOAD 100-320 KGS

Brand Name : GYG

Model Number : YJ110

Place of Origin : China

MOQ : 1SET

Price : 1500-3500 USD/SET

Payment Terms : Western Union, T/T，, L/C

Supply Ability : 10000Sets /Year

Delivery Time : 7-10 working days

Packaging Details : Standard Packing,Packed in Wooden box or as per client's request

LOAD : 100-320 KGS

LIFT SPEED : 0.5-1.0 M/S

MOTOR POWER : 1.5-3.5 KW

POLE : 4

Weight : 155kg

Contact Now

GEARED MACHINE , ELEVATOR TRACTION SYSTEM , ELEVATOR PARTS ,

GEARED TRACTION MACHINE

PERFORMANCE PARAMETERS:

Suspension:1:1

Max.Static Load : 1800kg

Control : VVVF

Brake : DC110V 1.4A

Weight : 155kg

Horizontal type is optional

Load (kg)	Lift Speed(m/s)	Ratio	Sheave Diam (mm)	Rope Sheave(mm)	Motor Power (kw)	Pole
100	0.5	45:1	Φ320	3×Φ8×12	1.5	4
100	1	45:2	Φ320	3×Φ8×12	1.5	4
200	0.5	45:1	Φ320	3×Φ8×12	1.5	4
200	1	45:2	Φ320	3×Φ8×12	2.2	4
320	0.5	45:1	Φ320	4×Φ8×12	2.2	4
320	1	45:2	Φ320	4×Φ8×12	3.5	4

0.5-1.0 M/S ELEVATOR TRACTION SYSTEM LOAD 100-320 KGS

PAYMENT&SHIPPING :

0.5-1.0 M/S ELEVATOR TRACTION SYSTEM LOAD 100-320 KGS

CERTIFICATIONS:

0.5-1.0 M/S ELEVATOR TRACTION SYSTEM LOAD 100-320 KGS

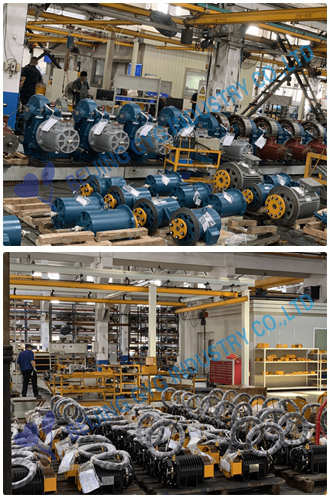

EXHIBITION SHOW:
