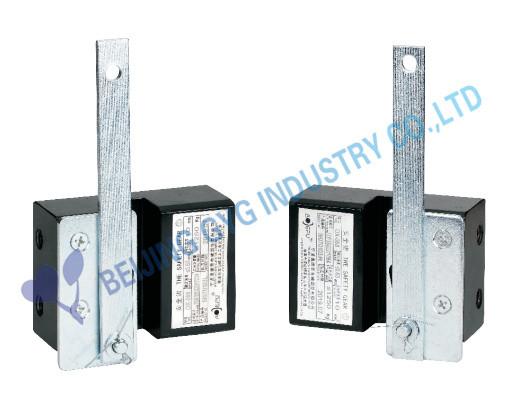

INSTANTANEOUS ELEVATOR SAFETY GEAR RATED SPEED 0.63M/S GX-088

Brand Name : GYG

Model Number : GX-088

Certification : EAC/CE

Place of Origin : China

MOQ : 1SET

Payment Terms : Western Union, MoneyGram, T/T

Delivery Time : 5-10 working days

Packaging Details : Standard Packing,Packed in carton or as per client's request

Rated speed : ≤0.63m/s

Total permit system quality : ≤1250kg（10)/1478kg(16)

Matching guide rail : 10mm、16mm(guiding face width)

Structure form : sing moving wedge,single roller

Pulling form : single pulling(M8)

Performance standard : GB7588-2003,EN81-1:1998

Shipping : Air/Sea/Dhl/Fedex

Contact Now

ELEVATOR SAFETY GEAR GX-088 , PROGRESSIVE SAFETY GEAR , ELEVATOR SAFETY PARTS
RATED SPEED 0.63M/S

The elevator safety gear is a device under the control of speed governor, when the elevator over speed its rated speed or in the case of suspension rope breakage or slack, the car stop in emergency and clamp on the guide rail. It provides effective protection to the safe operation of the elevator and generally installed in the car frame or counterweight frame. Safety gear device is composed of two parts: operating mechanism (safety gear linkage mechanism) and braking mechanism (safety clamp).

PERFORMANCE PARAMETER:

Rated speed	≤0.63m/s
Total permit system quality	≤1250kg(10)/1478kg(16)
Matching guide rail	10mm,16mm(guiding face width)
Structure form	sing moving wedge,single roller
Pulling form	single pulling(M8)

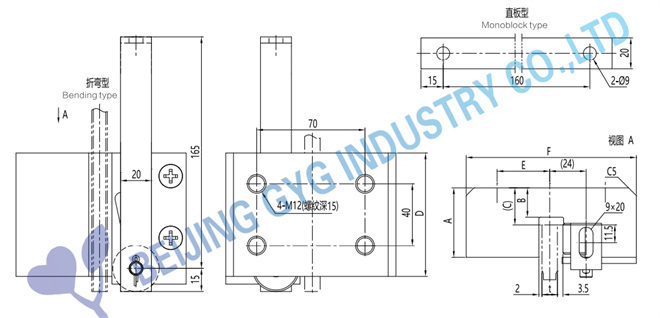

Note: the safety clamp can be made of straight plate and bending type.

MODEL	A	B	C	D	E	F
A01	45	19	24	80	35	110
A02	40.5	15	20	70	21	100
A02	50	20	24	80	35	120

INSTANTANEOUS ELEVATOR SAFETY GEAR RATED SPEED 0.63M/S GX-088

INSTANTANEOUS ELEVATOR SAFETY GEAR RATED SPEED 0.63M/S GX-088
DIFFERENT MODELS:
